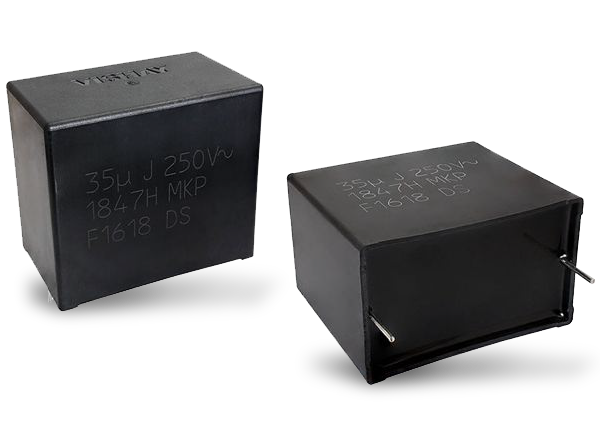

Vishay / BC Components MKP385e-THB AC & Pulse Metallized Film Capacitors

Vishay / BC Components MKP385e-THB AC and Pulse Metallized Polypropylene Film Capacitors are designed for automotive applications where pulse, high frequency, and high AC current capabilities are required. The high temperature, high humidity capacitors are AEC-Q200 qualified and can be used in onboard and inductive charging systems, battery management, high pulse and high-frequency currents, and snubber, resonant converters. The series has a capacitance range of 0.001μF to 15μF and a rated voltage of 400VDC to 2500VDC. Vishay / BCC MKP385e-THB capacitors are ideal for hybrid and electrical vehicles and peripheries applications.


  • AEC-Q200 qualified (rev. D)
  • High robustness under high humidity
    • THB: 60ºC / 93% RH / 56 days at rated voltage
  • Maximum operation temperature up to +125°C
  • Capacitance range of 0.001μF to 15μF
  • Customization on request


  • Hybrid and electrical vehicle power converters
  • EV-PHEV OBC and inductive charging systems
  • Battery management systems (BMS)
  • Snubber
  • Resonant converters
Publicado: 2019-07-03 | Actualizado: 2022-06-07
