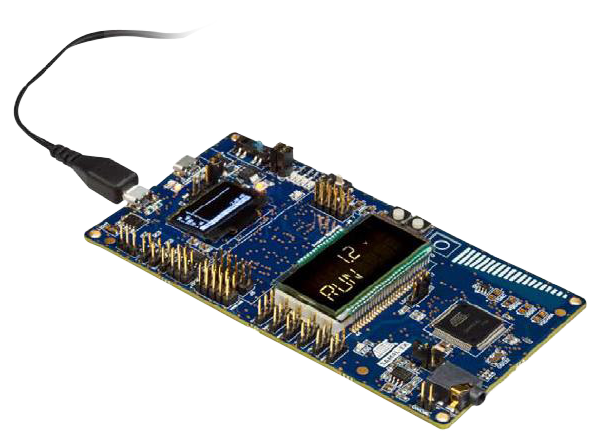

Microchip ATSAM4L-EK Evaluation Kit lets designers quickly evaluate and develop code for applications running on Microchip SAM4L Cortex™-M4 microcontrollers (MCUs). These new Microchip MCUs consume just one-third the power of currently available solutions. Microchip ATSAM4L-EK evaluation board features an embedded debugger, dedicated circuitry to measure the power consumption of your application, LCD, USB, capacitive touch functionality, and more. This ATSAM4L-EK kit also offers expansion headers to plug in Microchip extension boards so you can easily add gyrometers, accelerometers, Wi-Fi, and ZigBee.
ATSAM4LC4C Cortex-M4 device
Board monitor with OLED color display, power measurement stage for ATSAM4LC4C power, joystick, and five LEDs
Segger J-Link OB Module (embedded debugger)
QTouch slider and button
Segment LCD (4x40)
USB host and device
Wireless 10-pin interface
SPI serial Flash (AT25DF641A)
Sensor Xplained support
Reset push button
Audio jack connector
User input push button
Microchip Technology SAM4L ARM Cortex-M4 Microcontrollers
Delivering the lowest power in active mode and shortest wake-up time.
