Microchip Technology SAM L22 ARM-based Microcontrollers

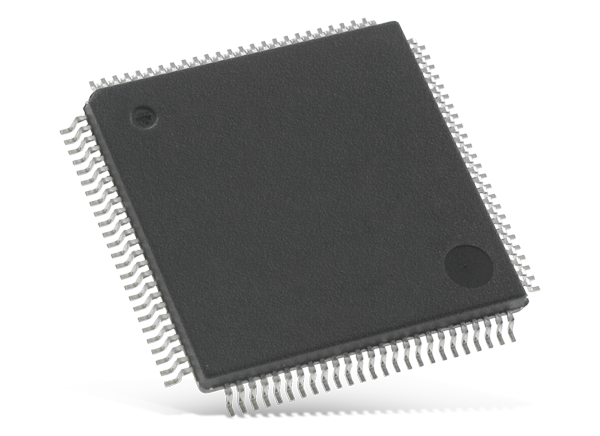

Microchip SAM L22 ARM-based Microcontrollers (MCUs) are ultra-low-power segment LCD microcontrollers using the 32-bit ARM® Cortex®-M0+ processor. These MCUs drive up to 320 LCD segments and range from 48- to 100-pins with up to 256KB Flash and 32KB of SRAM. The SAM L22 devices operate at a maximum frequency of 32MHz and reach 2.46 CoreMark®/MHz.

Features

256KB of Flash and 8KB of SRAM
Up to 32MHz operating frequency
Up to 320 LCD segments addressable
Six serial communication modules (SERCOM) configurable as
- UART/USART, including ISO7816, SPI or I2C
- Four 16-bit timer/counters
- One 24bit Timer with 4 capture/compare registers
- 32-bit Real-Time Clock and calendar
- One 20-channel 12-bit ADC, 2x Analog Comparator
- 1.62V to 3.63V power supply

Full Speed USB Device
16-channel DMA and 8-channel Event System
AES, True Random Number Generator, and Tamper Detection
Support for up to 256 touch channels
Easy pin migration from SAM D21 and SAMD20 and SAML21 devices
Supported by Microchip Studio, the Microchip Software Framework, and the SAM L22 Xplained Pro kit
