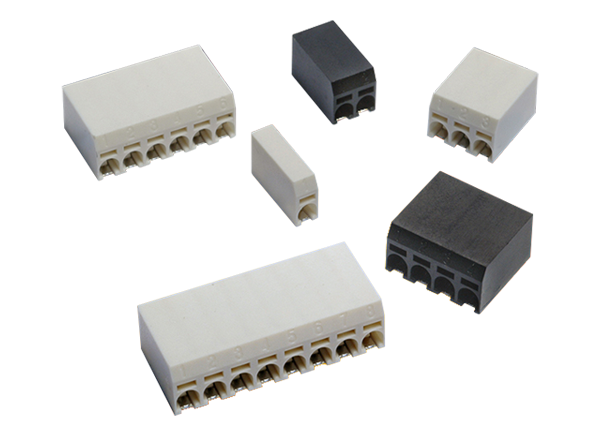

KYOCERA AVX 9276 W2B Poke-In Connectors

KYOCERA AVX 9276 Wire-to-Board Poke-In Connectors are discrete connectors that provide a quick and reliable wire-to-board termination in a sleek 2.5mm pitch SMT package for a broad range of industrial and commercial markets. The 9276 series Connectors accept a wide range (18 to 24 AWG solid or stranded) of wire by simply stripping the wire and inserting it into the connector. They feature a high spring force beryllium copper upper-spring contact to provide lance-type retention to capture and retain the wire. By incorporating a dual contact design, a maximized current rating (6A) is achieved, as well as reducing PCB space. The dual-contact design also provides two solder points for each wire, eliminating the need for external anchor tabs. KYOCERA AVX 9276 Poke-In Connectors are developed for harsh industrial and Solid State Lighting (SSL) applications.
