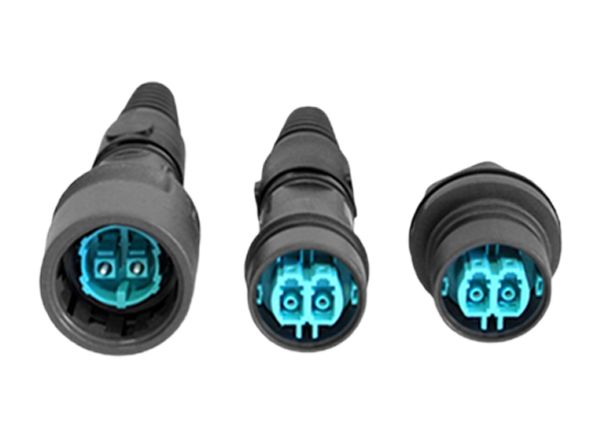

Bulgin 6000 Duplex LC Fiber Optic Buccaneer Connectors provide two-way signal transmission with a Duplex LC-Type interface in Flex, Flex In-Line, and Rear Panel mounting styles. A secure, 30° twist, tamperproof lock prevents accidental un-mating. When mated, the connectors provide IP66, IP68, and IP69K ratings. Constructed of an all-plastic self-extinguishing material body, the fiber optic data connectors are UL 94V-0 rated, UV stable, halogen-free, and lightweight. The Bulgin 6000 Duplex LC Fiber Optic Buccaneer connectors are suitable for long-term outdoor use.
Sealed to IP66, IP68, and IP69K when mated
IP68 rating tested at 1.054kg/cm2 (15lb/in2) 10m depth for two weeks
Duplex LC-Type interface
0S1, 0M1, and 0M3 cabled versions
Cable range from 5M to 450M
32.0mm diameter over coupling ring
Flex, Flex-in-Line, and Rear Panel mounting styles
