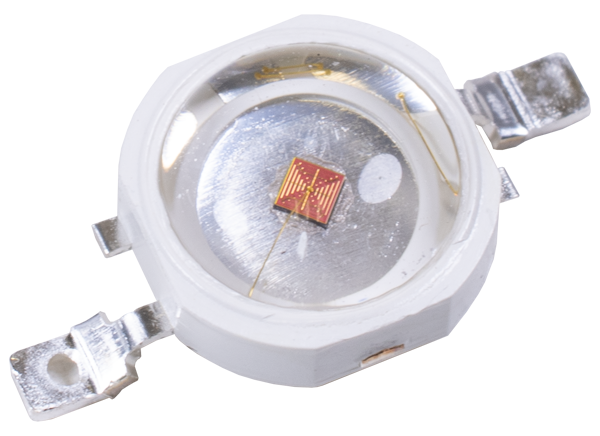

Broadcom ASMT-Ax3x 3W Power LED Light Source

Broadcom ASMT-Ax3x 3W Power LED Light Source is a series of high performance 3W LEDs designed to handle high thermal and high driving current. The low profile package design of the ASMT-Ax3x 3W Power LED Light Source makes these high power LEDs suitable for a wide variety of applications, especially ones in which height is a constraint.

Broadcom ASMT-Ax3x Power LED Light Source features high current operation, long operation life, and a wide viewing angle (140º). This Broadcom Power LED series is ideal for a variety of applications, including architectural lighting, channel backlighting, contour lighting, retail display lighting, and more.

Features

  • Available in Red, Red Orange, Amber, Blue, Royal Blue, Green, Cool White, Neutral White, and Warm White color
  • Energy efficient
  • Exposed metal slug for excellent heat transfer
  • Compatible with reflow soldering process
  • High current operation
  • Long operation life
  • Wide viewing angle at 140º
  • Silicone encapsulation
  • Non-ESD sensitive (threshold > 16kV)
  • MSL 2a products

Applications

  • Architectural lighting
  • Channel backlighting
  • Contour lighting
  • Retail Display lighting
  • Decorative lighting
  • Garden lighting
  • Safety, exit, and emergency signs lighting
  • Specialty lighting
  • Task lighting

Package Dimensions (mm)

Mechanical Drawing - Broadcom ASMT-Ax3x 3W Power LED Light Source
