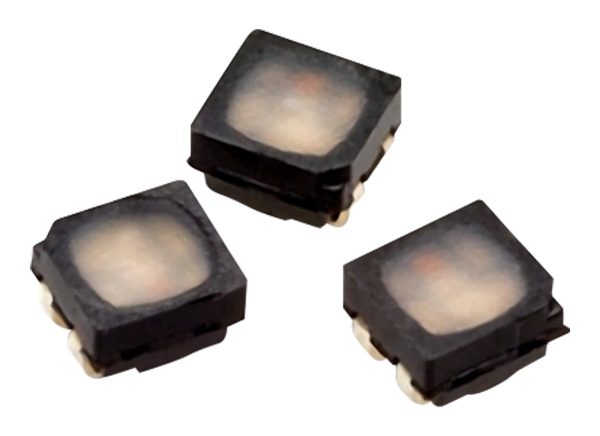

Broadcom ASCB-JTC2 Tricolor PLCC-4 LED
Broadcom ASCB-JTC2 Tricolor PLCC-4 LED is a low-profile, high-brightness LED targeting indoor small pixel pitch displays. The ASCB-JTC2 LED features a black outer appearance with diffused epoxy to enhance display contrast, providing a suitable solution for high-resolution video displays. The short lead design of the ASCB-JTC2 enables an easy potting process. To facilitate easy pick and place assembly, the LEDs are packed in tape and reel form.
The Broadcom ASCB-JTC2 Tricolor PLCC-4 LED is offered in a 1.6mm x 1.5mm x 1.0mm package.
Features
- Low-profile PLCC-4 package with full black body
- Short leads for better potting process
- Compatible with the reflow soldering process
- RoHS6 compliant
Applications
- Indoor full-color displays
- Small pixel pitch signage
Specifications
- Luminous intensity (Typical)
- Red: 55mcd
- Green: 175mcd
- Blue: 19mcd
- Dominant wavelength (Typical)
- Red: 620nm
- Green: 529nm
- Blue: 466nm
- Peak wavelength
- Red: 628nm
- Green: 521nm
- Blue: 462nm
- 105° viewing angle
- 100mA peak forward current
- DC forward current
- Red: 20mA
- Green: 15mA
- Blue: 11mA
- Power dissipation
- Red: 46mW
- Green: 46.5mW
- Blue: 34.1mW
- +100°C LED junction temperature
- -40°C to +85°C operating temperature range
- 1.6mm x 1.5mm x 1.0mm package
Application Notes
Related Products
Broadcom ASCB-RTCx Tricolor PLCC-4 LEDs
1.7mm x 1.6mm tricolor LEDs available in both common anode and common cathode options.
Broadcom ASCB-RTF2 Tricolor PLCC-4 LED
High-brightness LED in a 1.7mm x 1.6mm PLCC-4 package, optimized for small pixel pitch displays.
Broadcom ASCB-UTC2 2828 Tricolor PLCC-6 LED
Offers individually addressable pins for each color in a small 2.8mm x 2.8mm package.
Package Outline
