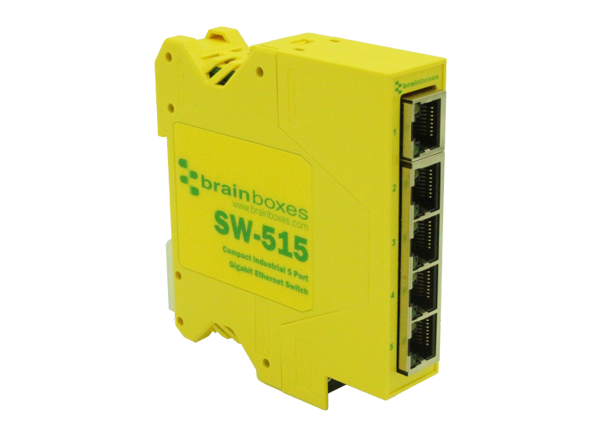

Brainboxes SW-515 Compact Ethernet Switch

Brainboxes SW-515 Compact Ethernet Switch includes 5 galvanically isolated Ethernet ports. This Ethernet switch provides automatic detection of 10/100/1000Mbps data transmission speed. The SW-515 switch features dual input redundant power supply with a wide voltage range that enables powering up from USB or on the 24V factory floor. This Ethernet switch incorporates a removable power terminal with numbered pins for easy wiring. The SW-515 switch comes in a compact design that efficiently uses the DIN rail. This switch is ideal for the factory floor, in-vehicle, and marine applications.

Features

  • Redundant dual power inputs that reduce the risk of a power outage
  • Power terminal is removable with numbered pins for easy wiring
  • No software required
  • Power consumption is optimized based on the status of the link device
  • Compact design that efficiently uses the DIN rail

Specifications

  • 5-port Gigabit Ethernet switch
  • 10/100/1000Mbps Ethernet speed
  • 5VDC to 30VDC wide input voltage range (reverse polarity protected)
  • 99mm x 94mm x 23mm dimensions
  •  -40°C to 80°C operating temperature range (industrial)

Mechanical Drawing

Mechanical Drawing - Brainboxes SW-515 Compact Ethernet Switch
