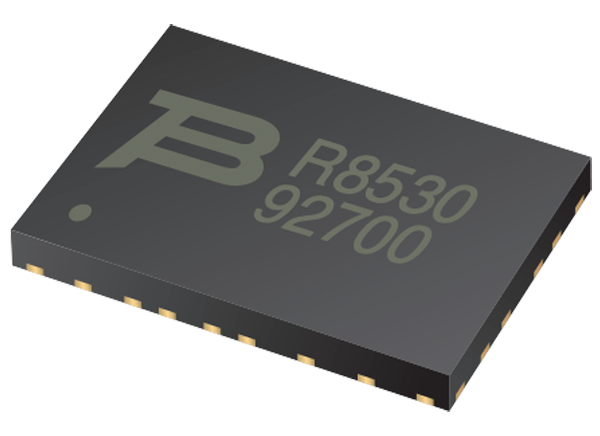

Bourns TBU-RS Dual Channel High-Speed Protector
Bourns® TBU-RS Dual Channel High-Speed Protector is a Transient Blocking Unit (TBU) overcurrent and TVS overvoltage protector for the RS-485 communications interface. This high-speed protector offers 1μs fast protection response time and 850V maximum impulse voltage. The TBU-RS protector comes in 8mm x 5.5mm dimensions and is RoHS compliant. This overcurrent protector is ideal for RS-485 interface surge protection and Antenna Interface Standards Group (AISG) modem protection.
Features
- Dual channel protector for RS-485 interfaces
- Aids compliance to IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT), and IEC 61000-4-5 (surge) standards
- 1μs fast protection response time
- RoHS compliant
Specifications
- Dual unidirectional
- 550V maximum impulse voltage
Applications
- RS-485 interface surge protection
- Antenna Interface Standards Group (AISG) modem protection
Additional Resources
Related Product
Bourns TBU® Circuit Protection Devices
Blocks transients in nanoseconds through a current-disconnecting mechanism.
Bourns 2030-XXT-SM 3-Pole Miniature Gas Discharge Tube
Fast-acting 3-pole miniature gas discharge tube designed to operate with TBU® devices.
Bourns TISP Thyristor Overvoltage Protectors
Specially designed to protect telecom equipment from high voltages caused by lightning strikes.
