Bourns Chip LAN Transformers

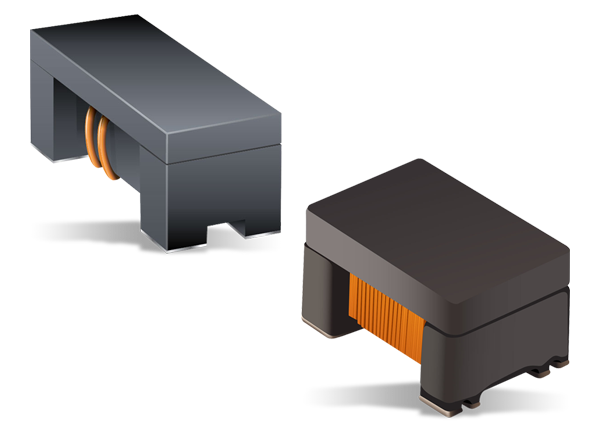

Bourns SM453229 Chip LAN Transformers are ideal for use in LAN interfaces for a variety of telecommunication and network devices. Bourns SM453229-231N7Y and SM453229-381N7Y chip LAN 10/100/1000 Base-T transformers are a discrete, center-tapped component wound on a drum core and capped with a ferrite plate to emulate the result of the close magnetic path of a toroid core. Bourns SRF2012A-801Y common-mode chip inductor pairs with the chip LAN transformer to provide EMI suppression. SM453229-231N7Y and SM453229-381N7Y are compliant with IEEE 802.3, and SM453229-231N7Y is PoE+ capable.

Features

  • SM453229-231N7Y
    • IEEE 802.3 Ethernet compatible
    • Discrete transformers and common mode chokes for flexible PCB layout
    • PoE+
    • Pair with common mode choke SRF2012A-801Y for EMI reduction
    • -40°C to +85°C expanded temperature range
    • RoHS compliant
  • SM453229-381N7Y
    • IEEE 802.3 Ethernet compatible
    • Discrete transformers and common mode chokes for flexible PCB layout
    • Pair with common mode choke SRF2012A-801Y for EMI reduction
    • -40°C to +85°C expanded temperature range
    • RoHS compliant

Electrical Schematic

Bourns Chip LAN Transformers

Datasheets

Design File

Related Inductors

SRF2012AA Common Mode Chip Inductors

Bourns SRF2012AA Common Mode Chip Inductors

Offers high impedance values, current ratings up to 400mA, and are RoHS compliant and halogen-free.

Learn Moreacerca de Bourns SRF2012AA Common Mode Chip Inductors View Productsrelacionado con Bourns SRF2012AA Common Mode Chip Inductors
