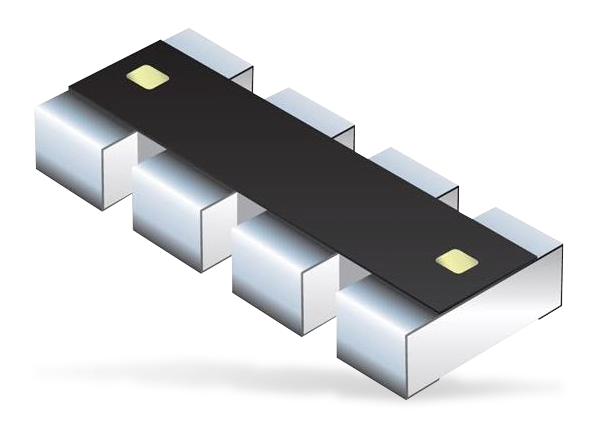

Bourns CAY10-AS Thick Film Chip Arrays
Bourns CAY10-AS Thick Film Chip Arrays are sulfur-resistant and available with two or four isolated elements in a 04 package width. These convex termination style resistors have a 3Ω to 1MΩ resistance range with 0Ω jumper and ±5% tolerance. Bourns CAY10-AS Thick Film Chip Arrays offer 63mW power, 50V maximum operating voltage, and an operating temperature range of -55°C to +125°C.
Features
- RoHS compliant
- Convex termination style
- 2 or 4 isolated elements in an 04 package width
- 3Ω to 1MΩ resistance range with 0Ω jumper
- Sulfur-resistant design
Specifications
- ±5% resistance tolerance
- 100V (maximum) overload voltage
- 50V (maximum) working voltage
- +70°C derating temperature
- -55°C to +125°C operating temperature range
Construction
Related Resistor Arrays
Bourns CAYxA-AS AEC-Q200 Thick Film Chip Resistor Arrays
AEC-Q200 compliant & sulfur resistant, based on ASTM-B-809-95 & EIA-977 (test parameter B) standard.
