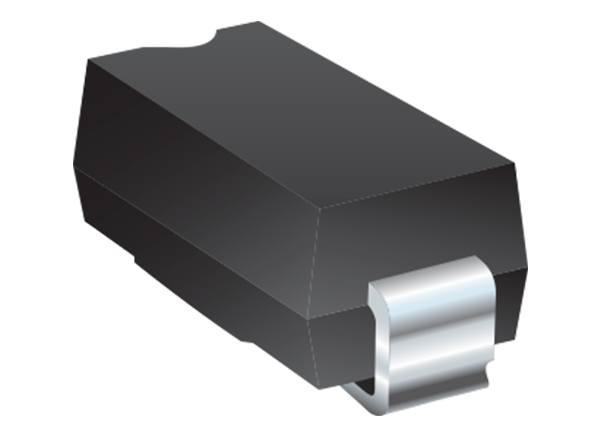

Bourns 1.5SMBJ Transient Voltage Suppressor (TVS) Diodes are housed in an SMB (DO-214AA) package with a 1500W power rating. The Bourns 1.5SMBJ TVS Diodes are ideal for protecting power buses due to the diodes' surge withstanding capability. The series offers 12V to 85V standoff voltage and bidirectional and unidirectional versions. 1.5SMBJ meets IEC 61000-4-2 ESD (Min. Level 4), IEC 61000-4-4 EFT, and IEC 61000-4-5 surge standards and are ideal for power supply equipment, communications, and data center applications.
RoHS compliant and halogen-free
DO-214AA (SMB) package
12V to 85V standoff voltage
Unidirectional and bidirectional versions
1500W power dissipation
DVBR = 0.1% x VBR at +25°C x DT typical temperature coefficient
IEC 61000-4-2 ESD (Min. Level 4)
IEC 61000-4-4 EFT
IEC 61000-4-5 Surge
Power supply equipment
Bourns TVS Diodes
Low capacitance devices that provide ESD, EFT, and surge protection.
