Blackhawk USB200 Emulator (USB200) is a TI XDS200-class emulator that is small, lightweight, and portable. The USB200 is compatible with Code Composer Studio IDE (CCS) v5.2.0 with the latest TI emulation update applied. The controller supports the compact TI 20-pin JTAG header and voltage ranges from 1.5V to 4.1V. The USB host port permits communication with the host PC while two LEDs display operational status. The USB200 supports the TI UniFlash™ programming utility and CCS DSS Java Scripting. Blackhawk USB200 Emulator is bus powered and requires no external power making it ideal for applications including audio, automotive, broadband, telecom, consumer electronics, industrial, medical, and wireless.
Low-Cost XDS200™-class Controller
Plug n’ Play USB Host Interface
Bus powered, no external power required
+1.5 to +4.1 volt device I/O support
Two status LEDs
Standard compact TI 20-pin JTAG Header Connector
Optional Isolation Adapter available

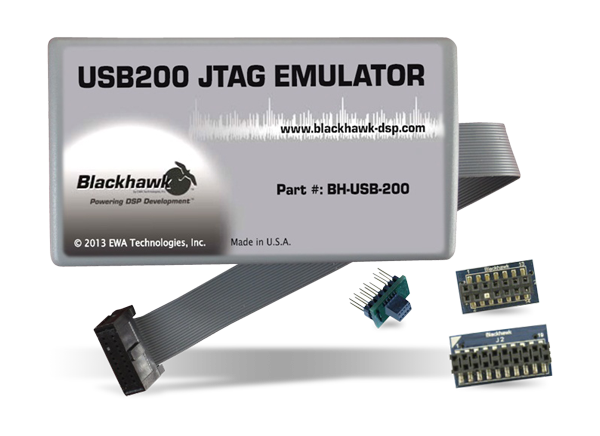

USB200 JTAG Emulator
High-Speed USB 2.0 Cable
3x pin converters (TI 14-pin , Arm 20-pin, Arm 10-pin)
Quick Start Guide
