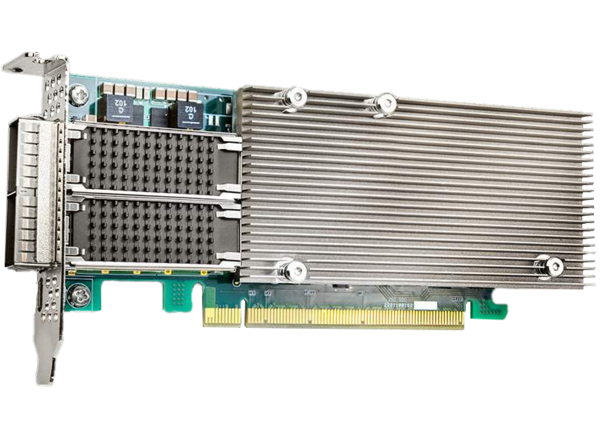

BittWare 250-SoC Accelerator Card
BittWare 250-SoC Accelerator Card offers a directly attached accelerator and NVMe-over-fabric designed for the creation of remote, disaggregated storage, or Ethernet Just-a-Bunch-of-Flash (EJBOF). The 250-SoC Card reduces the storage cost, footprint, and power within data centers.
The BittWare 250-SoC Accelerator Card includes the Xilinx Zynq UltraScale+ MPSoC device featuring both programmable logic and 64-bit ARM processors. The 250-SoC device is powerful and feature-rich, allowing coordination of data transfers between two 100GbE network ports, on-board DDR4 memory, and a PCIe Gen 3 host interface.
Required Equipment
- Full-height or half-height PCIe slot
- No RJ45 access to PS
- Order 250-SOC-ZU19EG-E-2A-20
- Half-height PCIe slot with RJ45 access to PS
- Full-height PCIe slot with RJ45 access to PS
- Order 250-SOC-ZU19EG-E-2A-10
- JTAG Breakout Board
- Order ACC-JTAG-BR
- For JTAG access to the card, connect the ACC-JTAG-BR to a USB-over-JTAG programming cable then the FPGA card and Vivado Labs support
Features
- 2x 100GbE via 2 QSFP28
- Ideal for NVMe storage arrays
- 64-bit cortex A53 ARM Zynq UltraScale+ ZU19EG MPSoC
Specifications
- FPGA
- Xilinx Zynq UltraScale+
- ZU19EG FFVD1760 package
- Core speed grade -2
- Quad-core cortex-A53 MPCore 1.5GHz application ARM
- Dual-core cortex-R5 MPCore 600MHz real-time ARM
- Mali-400 MP2 graphics processor
- Xilinx Zynq UltraScale+
- On-board DDR4 SDRAM
- DDR4 SDRAM FPGA Fabric memory
- One 4GB bank of DDR4 SDRAM x72 bits
- 2400 MT/s Transfer rate
- DDR4 SDRAM MPSoC memory
- One 4GB bank of DDR4 SDRAM x72 bits
- 2400 MT/s Transfer rate
- DDR4 SDRAM FPGA Fabric memory
- Host interface
- x16 mechanical PCIe Gen3 capable
- Configurable as x16 up to Gen3, or two x8 PCI in bifurcated slots
- QSFP cages
- 2 front panel 4-25Gbps-lane QSFP28 cages
- User programmable low jitter clocking supporting 10/25/40/100GbE
- Each QSFP28 can be independently clocked
- OCuLink
- 1 back panel 8-25Gbps-lane OCuLink connector
- 1 back panel 8-16Gbps-lane OCuLink connector
- NVMe, PCIe, 10/40/100GbE, OpenCAPI flexible configuration
- 2 additional optional 8-lane OCuLink connectors (25Gbps & 16Gbps)
- Board control (front panel)
- RJ45 1GbE access to the ARM processor, only on 250-SOC-ZU19EG-E-2A-10
- USB connector for UART to ARM processor
- Datacenter deployment, health monitoring, and reporting
- On-board power, voltage, and temperature monitoring
- Field flash update via software
- SMBus controlled anti-bricking, fallback, and multiboot
- SMBus access to unique board data and temperature sensor
- Cooling
- Active heatsink
- Electrical
- On-card power derived from PCIe slot supplies
- Power dissipation is application dependent
- Typical FPGA power consumption ~50W
- Environmental
- 5°C to 35°C Operating temperature
- Quality
- Manufactured to manufacture to ISO9001:2008 IPC JSTD-001 -Class III
- RoHS compliant
- Form factor
- 250-SOC-ZU19EG-E-2A-10
- PCB - Half-height, half-length PCIe board
- PCIe bracket - With dual QSFP28s, with UART-over-USB & RJ45 PS openings
- Full-height PCI bracket option (installed at the factory)
- For the Half-Height PCI bracket, please order 250-SOC-ZU19EG-E-2A-20, and ACC-250-SOC-RJ45 optionally if Ethernet access to the PS is required
- 250-SOC-ZU19EG-E-2A-20
- PCB - Half-height, half-length PCIe board
- PCIe bracket - With dual QSFP28s and UART-over-USB PS openings – no RJ45 support
- Full Half-height PCI bracket option (installed at the factory)
- Full-height PCI bracket (in the box)
- 250-SOC-ZU19EG-E-2A-10
Kit Contents
- 250-SoC FPGA board
- Built-In Self-Test (BIST)
- 1-year access to online Developer Site
- 1-year hardware warranty
