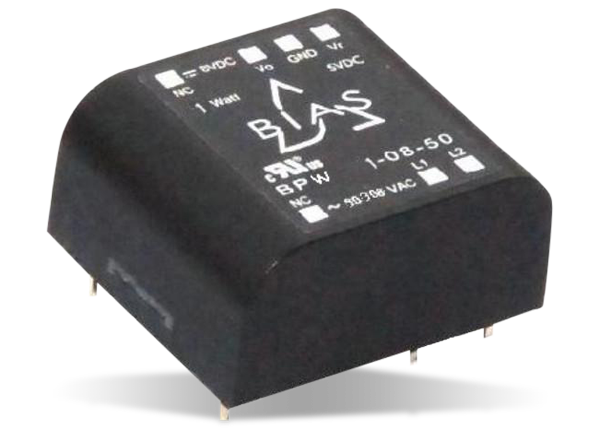

Bias Power BPH AC-DC Power Supplies

Bias Power BPH AC-DC Power Supplies are available in 1/2W and 1W with universal input and more than 500,000 hours mean time between failures (MTBF). These drop-in modules feature less than 30mW no-load input power and no derating across the entire temperature range of -30°C to +70°C. Bias Power BPH AC-DC Power Supplies use patented technology that does not require extra filtering or shielding because there is very little EMI / EMC interference with other circuits. These single- and dual-output power supplies measure 27.94mm x 23.24mm x 13.97mm. These devices create very little self-generated heat, making them ideal for intelligent devices such as smart sensors, meters, lighting, and grids, machine to machine (M2M), Internet of Things (IoT), and other control applications.


  • Single or dual output
  • Constant power mode, not current limit
  • Up to 75% efficiency
  • Complies with CSA CAN3-C235-83
  • EN 55022, Class B; FCC Part 15, Class B
  • Meets UL/CSA and EN Product Safety (ITE)


  • No derating across entire temperature range of -30°C to +70°C
  • >500,000 hours MTBF
  • 100-375VAC, 50/60Hz universal input
  • <30mW no-load input power
  • 3000VAC isolation
  • 27.94mm x 23.24mm x 13.97mm package


  • Smart sensors, meters, lighting, and grids
  • M2M
  • IoT
  • Energy management
  • HVAC/R
  • Power-line carrier devices
  • Building automation
  • Wired and wireless control devices
  • Sub-metering
  • IR receivers
  • Audio
  • Video
  • Security
  • Commercial appliances
