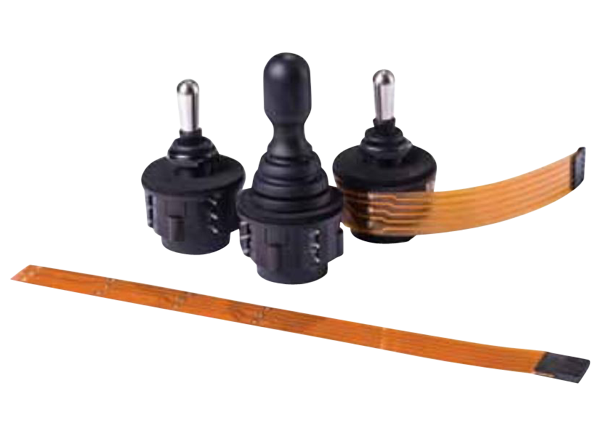

APEM NZ Compact Switch Joysticks

APEM NZ Compact Switch Joysticks feature an 11.9mm bush mount, silicone rubber sealing boots, and mineral-filled Nylon-6 body material. They provide a mechanical life of 1 million operations. APEM NZ Compact Switch Joysticks offer a stainless steel lever material with 15° lever travel (±7.5° from center). These joysticks weigh 35g to 45g (subject to configuration type) and have a 1mm to 4mm recommended panel thickness for half and full boot. Alternate handle selections are available as well as a polyimide flexi tail option.

Features

Compact size
11.9mm bush mount
Alternate handle selection

Polyimide Flexi tail option
Silicone rubber sealing boots
V5 switches up to 2A

Specifications

Mechanical
- 1 million max. operations
- 15° lever travel (±7.5° from center)
- Stainless steel lever material
- 35g to 45g weight (subject to configuration type)
- Mineral-filled Nylon-6 body material
- Silicone rubber boot material
- 1mm to 4mm (suggested 3mm) recommended panel thickness (for half boot)
- 1mm to 4mm (suggested 2mm) recommended panel thickness (for full boot)
- IK09 impact test rating (Lever / Boot options A and B)

Environmental
- -25°C to +50°C temperature range switch option A
- -40°C to +85°C temperature range switch option B
Electrical
- Up to 2A nominal current switch option A
- Up to 100mA nominal current switch option B
- 125V_AC max. voltage
