Apacer Technology Inc. DD2.22260S.001 DDR4 SDRAM XR-DIMM

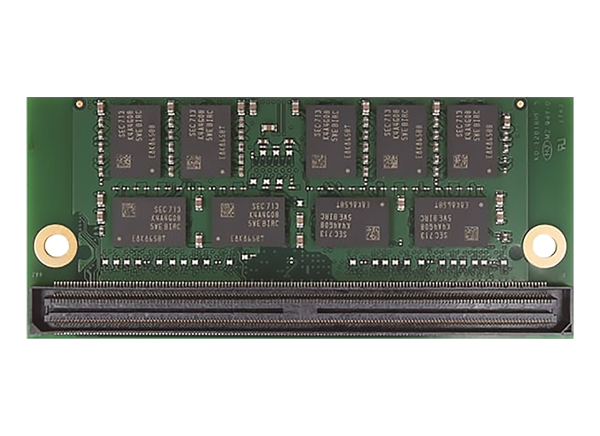

Apacer Technology Inc. DD2.22260S.001 DDR4 SDRAM XR-DIMM is a high-density memory module with 16 pieces of 1024M x 8bits DDR4 synchronous DRAMs and a 4K bits EPROM. This memory module features a bi-directional differential data strobe, 8-bit prefetch, and internal Vref DQ generation. The DDR4 SDRAM is a 300-pins dual inline memory module that is intended for mounting into a connector socket. This memory module supports per DRAM addressability, write CRC at all speed grades, and CA parity (Command/Address parity). The DD2.22260S.001 SDRAM operates at -40°C to 95°C industrial temperature range and 1.14V to 1.26V power supply range. The DD2.22260S.001 synchronous DRAM offers 19.2GB/sec bandwidth and 2400Mbps speed grade.

Features

  • 8-bit pre-fetch
  • Bi-directional differential data strobe
  • Internal Vref DQ generation
  • CA parity (Command/Address parity)
  • Supports DBI (Data Bus Inversion) (x8)
  • On-DIMM thermal sensor
  • 16 internal banks (4 bank groups)
  • eXtreme rugged 300 pin connector type dull in-line memory module
  • Burst Length (BL) switch on-the-fly BL8 or BC4 (Burst Chop)
  • Supports per DRAM addressability
  • Supports write CRC at all speed grades
  • Halogen-free
  • Lead-free (RoHS compliant)
  • Serial Presence Detect (SPD)
  • With coating (CE-1170)

Specifications

  • -50°C to +105°C storage temperature range
  • -40°C to +95°C operating temperature range
  • 1.14V to 1.26V supply voltage range
  • 1.2GHz clock frequency
  • 19.2GB/sec bandwidth
  • 16GB memory size
  • 2400Mbps speed grade

Block Diagram

Block Diagram - Apacer Technology Inc. DD2.22260S.001 DDR4 SDRAM XR-DIMM

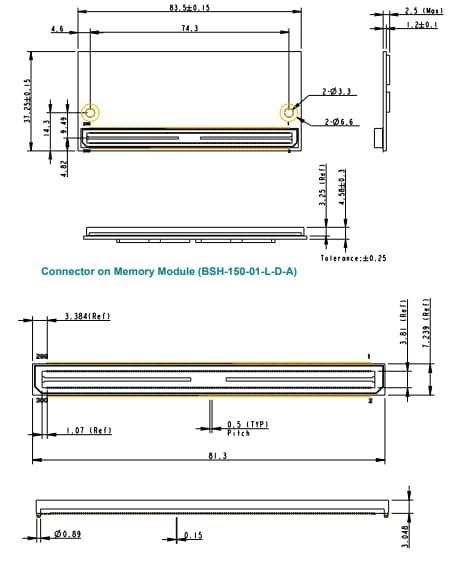

Mechanical Drawing

Schematic - Apacer Technology Inc. DD2.22260S.001 DDR4 SDRAM XR-DIMM
