Analog Devices Inc. EVAL-XLMOUNT1 Mounting Block

Analog Devices Inc. EVAL-XLMOUNT1 Mounting Block provides a mechanically optimized mounting block for accelerometer breakout boards. The aluminum EVAL-XLMOUNT1 can be used to secure an accelerometer to any source acceleration, such as a shaker table, while providing optimized mechanical characteristics for evaluating the sensor frequency response and other characteristics. The EVAL-XLMOUNT1 Mounting Block provides a ±1.5dB flat response up to 20kHz. The accelerometer breakout board can be attached to the mounting block in multiple orientations along the 5 different faces of the block.


  • Mechanically controlled evaluation of accelerometers
  • Resonance optimized up to 20kHz
  • Multi-orientation mount

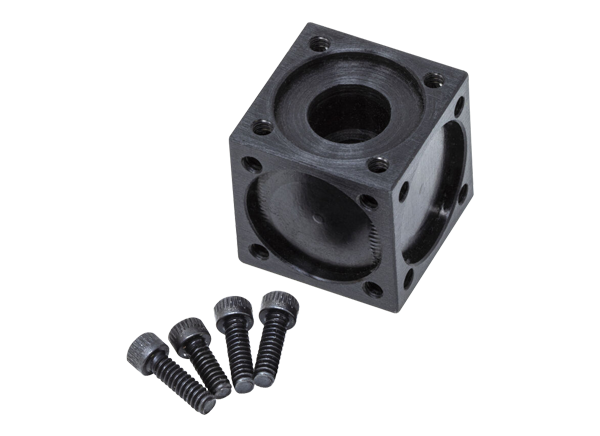

Kit Contents

  • Mounting Block
  • 4x 4-40 screws for mounting accelerometer board
Publicado: 2020-06-23 | Actualizado: 2022-03-11
