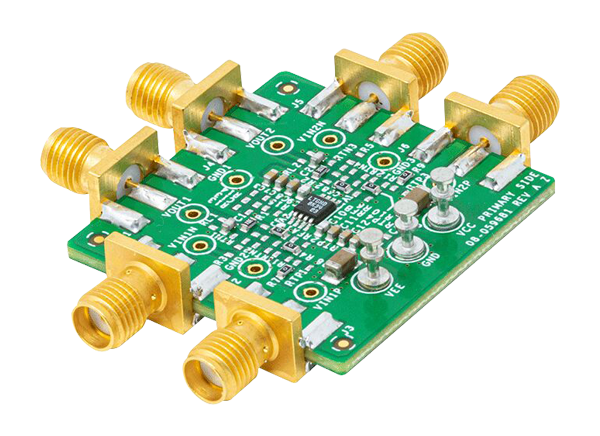

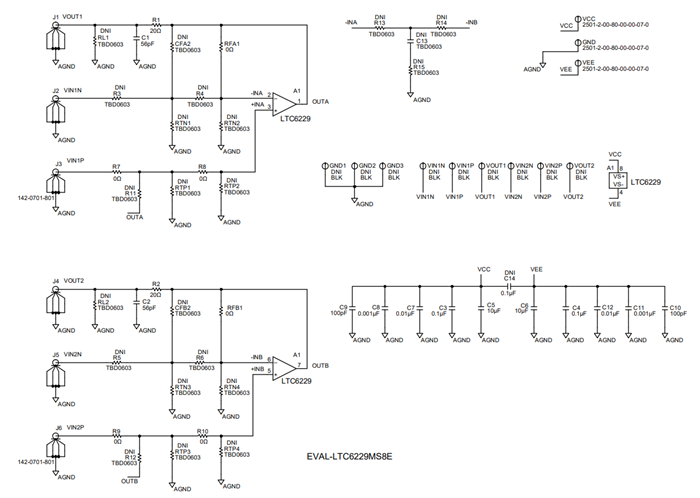

Analog Devices Inc. EVAL-LTC6229MS8E Eval Board is designed to evaluate the LTC6229 low distortion rail-to-rail output op-amps with shutdown. This eval board is a prepopulated board on a buffer configuration with a post-low-pass filter at a cutoff frequency of 142MHz. This configuration allows the LTC6229 op-amp to be used as a high-speed analog-to-digital driver. The EVAL-LTC6229MS8E board provides provisions for typical applications of the LTC6229 including a high-speed, low-voltage, low noise, in-amp, and as an active filter. This 4-layer eval board accepts edge-mounted SMA connectors on both inputs and outputs to provide an efficient connection to the test equipment and other circuitry. The EVAL-LTC6229MS8E eval board offers optimized power and ground planes for low noise and high-speed operation. This eval board accepts C0402 and C0603 SMT components and C1206 bypass capacitors for C5 and C6.
Enables efficient prototyping
User-defined circuit configuration
Edge mounted SMA connector provisions
Simple connection to test equipment and other circuits
Dual output DC power supply
Dual-channel signal generator
Three banana plug to grabber cables
Four SMA to BNC male cables
Analog Devices Inc. Amplificadores operativos de 730 MHz de baja distorsión LTC6229
Ofrecen un ruido de voltaje de referencia de bajo nivel de entrada de 0.88 nV/√Hz y un bajo rendimiento de distorsión de − 100 dB a 4 VP-P.
