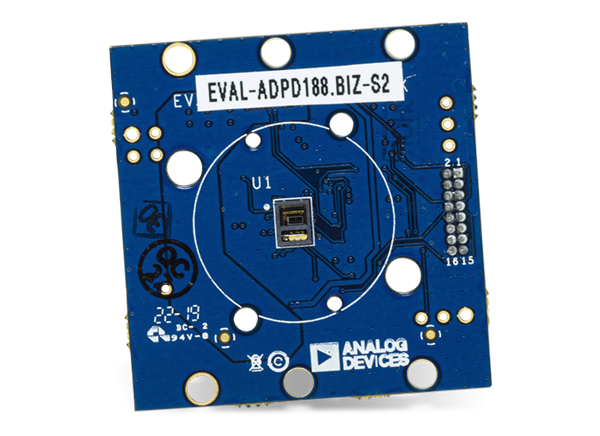

Analog Devices EVAL-ADPD188BIZ-S2 Evaluation Board provides users with a simple means of evaluating the ADPD188BI optical module along with the EVAL-CHAMBER smoke chamber for smoke and aerosol detection applications. The evaluation system is composed of the EVAL-ADPD188BIZ-S2 evaluation board, the EVAL-ADPDUCZ microcontroller board (not included), the optional EVAL-CHAMBER smoke chamber (not included), and the Wavetool Evaluation Software graphical user interface (GUI). The software provides users with both low level and high-level configurability, real-time frequency and time domain analysis, and user datagram protocol (UDP) transfer capability so that the evaluation board can easily interface to the user development system.
The EVAL-ADPD188BIZ-S2 is powered through the ribbon cable from the EVAL-ADPDUCZ microcontroller board. The ADPD188BI datasheet should be consulted in conjunction with the evaluation board user guide when using this evaluation board.
Supports the detection of universal asynchronous receiver and transmitter (UART)
UDP transfer capability
Full configuration of the ADPD188BI
Compatible with the EVAL-CHAMBER smoke chamber
EVAL-ADPD188BIZ-S2 evaluation board
PC running Windows 7 or Windows 10 operating system
EVAL-ADPDUCZ microcontroller board
EVAL-CHAMBER smoke chamber
Analog Devices Inc. ADPD188BI Integrated Optical Module
Complete photometric system for smoke detection using optical dual wavelength technology.
