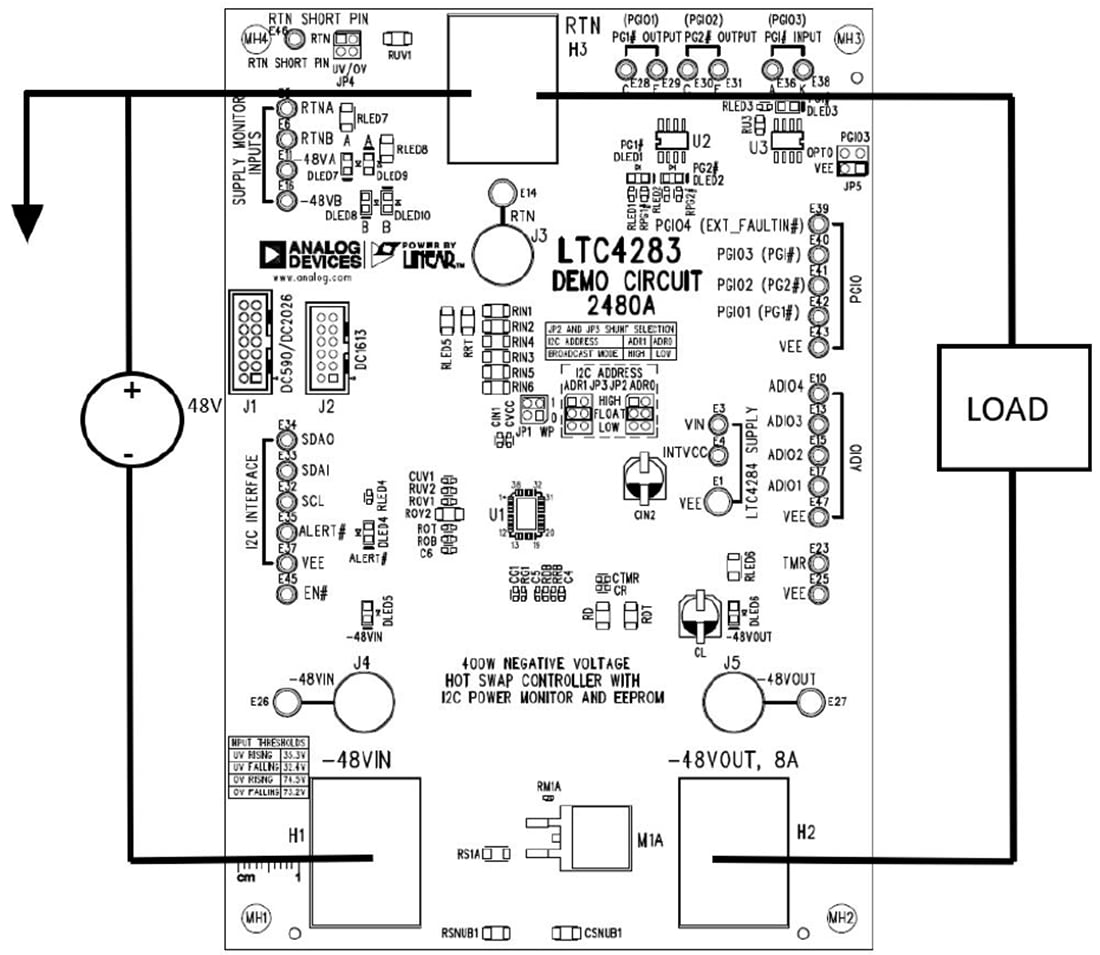

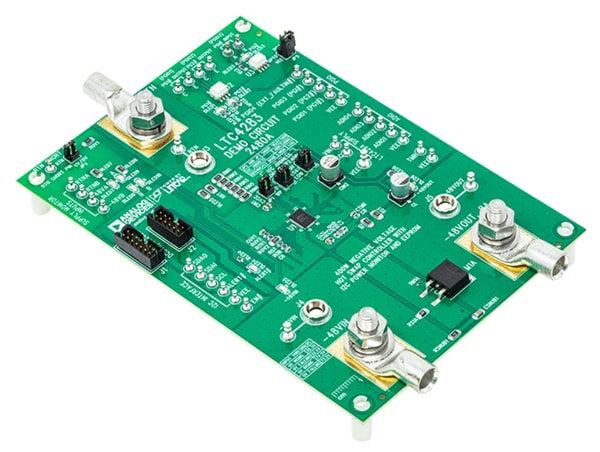

Analog Devices LTC4283 Demo Board DC2480A showcases the LTC4283 high power, negative hot-swap controller with energy monitor, and EEPROM in a -48V, 8A (400W) application. DC2480A offers a reliable, low-cost hotplug solution for high-power systems where input steps are imminent. Included onboard is isolation for power good control pins to enable downstream power converters. LEDs indicate the presence of -48V input and output, and the state of both supplies feeds and power good signaling. High voltage layout rules are followed throughout for the best long-term product reliability. Headers are provided for three I2C interfaces, providing instant access to voltage, current, power, energy, fault log, and board temperature data.
Analog Devices Inc. Controladores de voltaje negativo intercambiables en caliente LTC4283
Controlan un MOSFET externo de canal N que permite que una placa se mueva con seguridad de una placa posterior activa.
