Analog Devices Inc. ADM3064E Full-Duplex RS-485 Transceiver

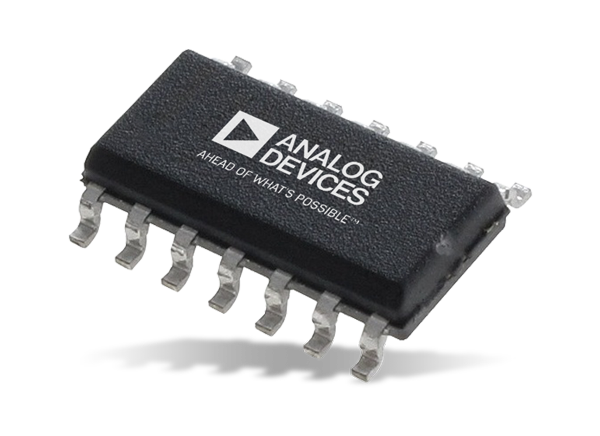

Analog Devices Inc. ADM3064E Full-Duplex RS-485 Transceiver features IEC Electrostatic Discharge (ESD) protection, allowing this device to withstand ±12kV contact discharges on the transceiver bus pins without latch-up or damage. The ADM3064E features a VIO logic supply pin that allows a flexible digital interface capable of operating as low as 1.62V.

The ADM3064E features a 1/4 unit load input impedance that allows up to 128 transceivers on a bus. This device operates at a low 500kbps data rate suitable for operation over long cable runs. Excessive power dissipation caused by bus contention or by output shorting is prevented by a thermal shutdown circuit. If a significant temperature increase is detected in the internal driver circuitry during fault conditions, this feature forces the driver output into a high impedance state. The ADM3064E Transceiver guarantees a logic high receiver output when the receiver inputs are shorted, open, or connected to a terminated transmission line with all drivers disabled.


  • TIA/EIA RS-485 Compliant over Full Supply Range
  • 3.0V to 5.5V Operating Voltage Range on VCC
  • 1.62V to 5.5V VIO Logic Supply Option Available
  • ESD Protection on the Bus Pins
    • IEC 61000-4-2 ≥ ±12 kV Contact Discharge
    • IEC 61000-4-2 ≥ ±12 kV Air Discharge
    • HBM ≥ ±30 kV
  • Full Hot Swap Support (Glitch Free Power-Up/Power-Down)
  • Low Speed 500kbps Data Rate for Long Cables
  • Full Receiver Short-Circuit, Open Circuit, and Bus Idle Fail-Safe
  • Extended Temperature Range up to 125°C
  • PROFIBUS Compliant at VCC ≥ 4.5V
  • Full Duplex
  • Allows Connection of up to 128 Transceivers onto the Bus
  • 14-Lead, Narrow Body SOIC Package
  • RoHS Compliant


  • Industrial Fieldbuses
  • Process Control
  • Building Automation
  • PROFIBUS Networks
  • Motor Control Servo Drives and Encoders
