ams OSRAM AS5510 Magnetic Position Sensor Breakout Boards allow an easy and fast evaluation of the AS5510 linear incremental magnetic position sensor in a WLCSP package. This breakout board attaches to any I²C bus system. Power up the board (2.5V to 3.6V supply), and users can immediately start measuring the magnetic field passing through the position sensor. The position of a simple 2-pole magnet moving horizontally over the IC can be easily determined. This small factor board is fully assembled with the AS5510 position sensor in a WLCSP package and its necessary external components. All relevant signals are available on a single-row 2.54mm 4-pin header footprint and can be easily wired to your own application.

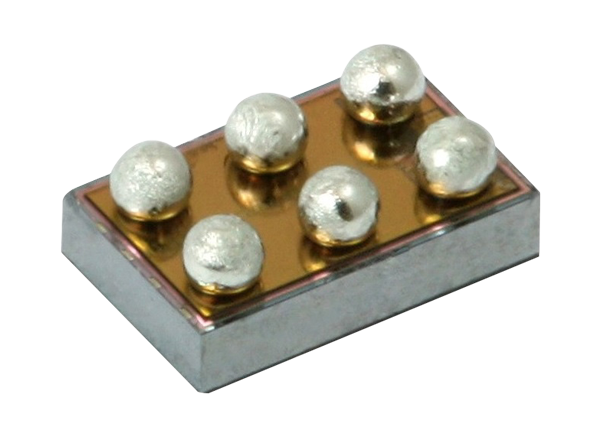

ams OSRAM AS5510 Linear Hall Sensors
Features 10-bit resolution and a simple configuration over an I2C interface, easy to use.
