ams OSRAM AS5200L Position Sensors
ams OSRAM AS5200L Position Sensors are easy-to-program stacked dual die magnetic rotary position sensors with redundant high-resolution 12-bit I2C or PWM outputs. This contactless system measures the absolute angle of a diametrically magnetized on-axis magnet. The AS5200L sensors include a robust design that eliminates the influence of any homogenous external stray magnetic fields. These sensors are equipped with a smart low power mode feature to reduce power consumption automatically. The AS5200L sensors are ideal for contactless potentiometer and automotive applications.
Features
- Contactless angel measurement
- Simple user-programmable start and stop positions over the I2C interface
- Digital output over I2C or PWM-encoded output
- Automatic entry into low-power mode
- Automatic magnet detection
- -40°C to 125°C operating temperature range
- MLF-16 (5mm x 5mm) package with wettable flanks
Applications
- Gear-shifters
- Contactless knobs
- Embedded automotive
- Pedals
- Joysticks
- Angular position measurement
Block Diagram

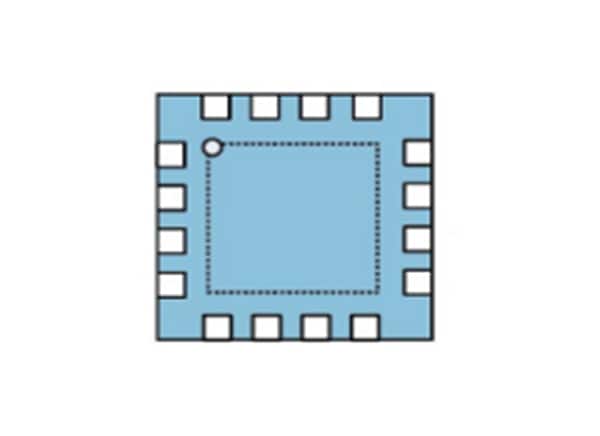

MLF-16 Pin-Out Diagram
Related Products
ams OSRAM AS5270 Magnetic Angular Position Sensors
Dual-die, high-resolution available with an analog output interface or a digital output interface.
ams OSRAM AS5600L Magnetic Rotary Position Sensors
Designed with a high-resolution 12-bit I2C or PWM output.
ams OSRAM AS5048 Magnetic Rotary Encoders
Easy to use 360° angle position sensor with a 14-bit high resolution output.
ams OSRAM AS5601 Magnetic Rotary Position Sensor
Magnetic rotary position sensor with incremental quadrature (A/B) and 12-bit digital output.
Additional Resources
Related Board
ams OSRAM AS5200L-MF_EK_AB Adapter Board
Printed circuit board (PCB) that evaluates the AS5200L Position Sensors.
