ams OSRAM AS5x47U Motorboard

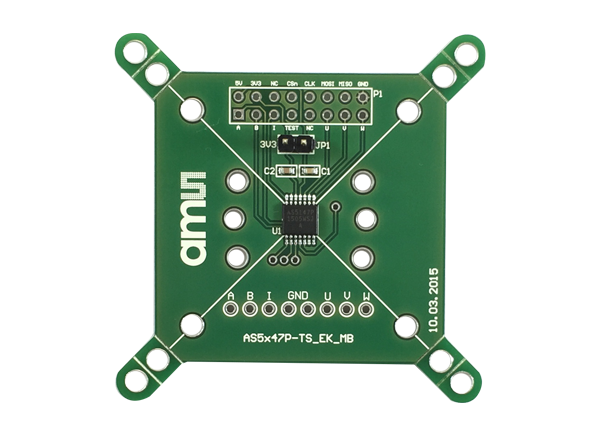

ams OSRAM AS5x47U Motorboard is a simple PCB that is designed to adapt to standard size BLDC or stepper motors. On this motorboard the sensor and external components are already soldered to the PCB. ams OSRAM AS5x47U Motorboard offers easy and quick evaluation of the AS5047U and AS5147U high resolution rotary position sensors.
Features
- Easy and quick evaluation of AS5147U
- Sensor and external components are already soldered
- Adapts to standard size BLDC or stepper motors

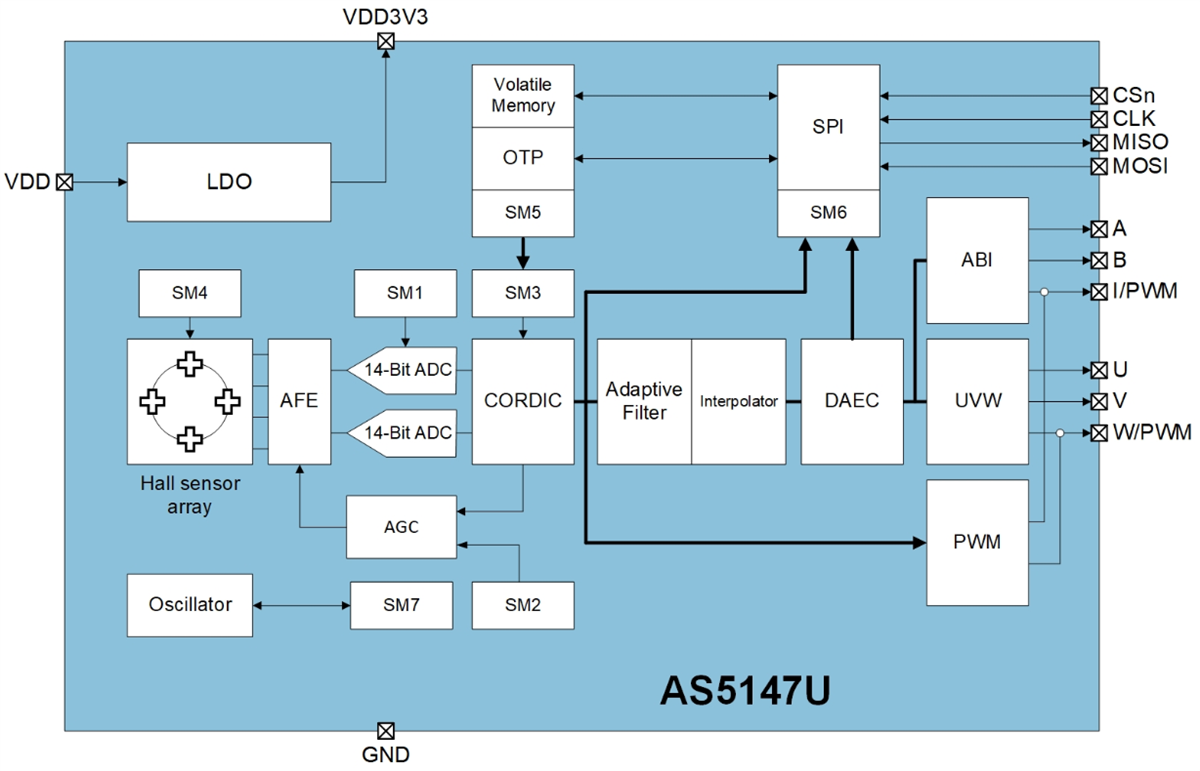

Block Diagram
Videos
Associated Sensor
ams OSRAM AS5x47U Position Sensors
Optimized to enable efficient operation of electric motors in power steering and braking systems.
