Amphenol Sine Systems PRM Series™ (Panel Rack Mount) Power Connectors

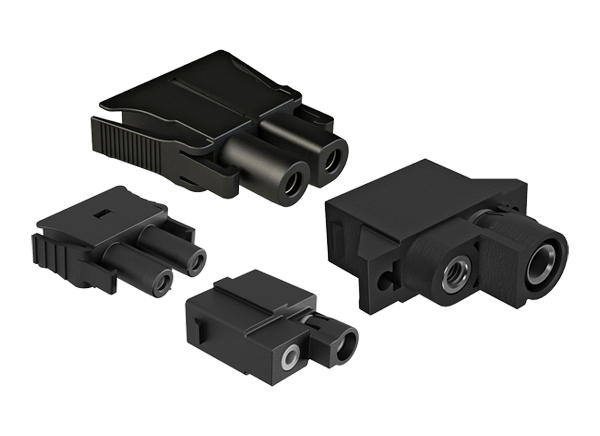

Amphenol Sine Systems PRM Series™ (Panel Rack Mount) Power Connectors are available in both plugs and receptacles. The PRM series provides a quick-connect power connector solution for use in panel rack-mount network applications. The quick-connect design of Amphenol Sine Systems PRM connectors enables denser installations, faster deployments, and upgrades.
Features
- Available in 2 position
- Field installable with standard crimpers
- Stackable / reduced footprint / in-line wire design
- Faster installations / replacements
- Keyed to prevent mismating / reverse polarity
- RADSOK® and SureSocket™ contacts
- Panel receptacles can be customized to specific applications
Applications
- Telecommunications infrastructure
- Data centers
- Broadband
Specifications
- -40°C to +125°C operating temperature range
- Up to 70A current
- 250V maximum voltage
- >500 mating cycles
- GF PA 6/6 housing body
- 2.4mm: 0.216 (5.5mm) and 4.0mm: 0.315 (8mm) contact sizes
- 2/2.4mm (SureSocket) or 4.0mm (RADSOK) number/size of contacts
- 2.4mm: 10AWG to 20AWG; 4.0mm: 6AWG to 16AWG contact barrel range
- UL94 V-0 flammability rating
PMR Series vs. Traditional
