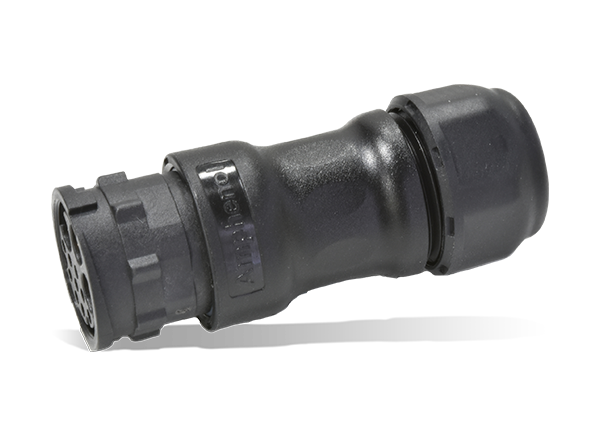

Amphenol LTW Ceres IP67 Crimp Terminal Connectors

Amphenol LTW Ceres IP67 Crimp Terminal Connectors are waterproof and field-installable circular connectors for easy wiring and quick assembly. These connectors incorporate a crimp terminal that is available in a power/data/hybrid group. The series is offered in both screw thread and lock bayonet types with UL 94V-0 and F1 ratings. Amphenol LTW Ceres IP67 Crimp Terminal Connectors employ a hexagonal nut that provides an easy-grip design and high tensile strength. Typical applications include lift and materials handling, heavy vehicles, and broadband wireless access.


  • IP67 waterproof protection
  • Field-installable
  • Crimp terminal available in power/data/hybrid group
  • Screw thread and bayonet type available
  • Hexagonal nut for easy-grip design and high tensile strength


  • Lift and materials handling
  • Heavy vehicles
  • Broadband wireless access


  • 5A / 10A / 20A / 10A+5A / 20A+5A current rating
  • 300V AC/DC voltage rating
  • UL 94V-0 and F1 rated
  • -40°C tp +105°C temperature range
  • Recommended wire gauge
    • 16AWG to 20AWG for B size
    • 12AWG to 20AWG for C size
    • 12AWG to 12AWG for D size
