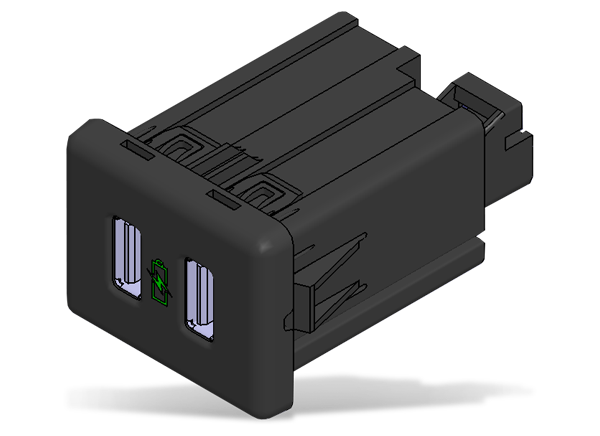

Amphenol Casco 2.4A Dual Smart USB Charger

Amphenol Casco 2.4A Dual Smart USB Charger charges all common global cell phone and iPad/Tablet charging interfaces up to 2.4A. The Dual Smart USB Charger offers two independent charging ports at 2.4A each and features a low quiescent current that allows the charger to be connected to a battery. The Amphenol Casco 2.4A Dual Smart USB Charger operates within a -40°C to +85°C temperature range and across a wide 9V to 16V range.

Features

Supports all commonly known charging profiles, enabling optimal device charging rates
Charges two devices simultaneously at optimal current, up to 2x 2.4A
Integrated ESD protection to protect against damage
Power supply unit with built-in over and reverse voltage protection
Tuned and shielded for low radiated emissions, preventing interference with nearby electronics
Commonly available, low cost, integrated connector

Operation across a wide voltage range, from 9V to 16V (12V nominal)
Over-temperature protection prevents damage if used with non-USB compliant devices
Supported charging profiles
- BC1.2
- China Telecom YD/T
- Divider 1 Mode
- Divider 2 Mode
- Divider 3 Mode
- 1.2V Divider Mode
