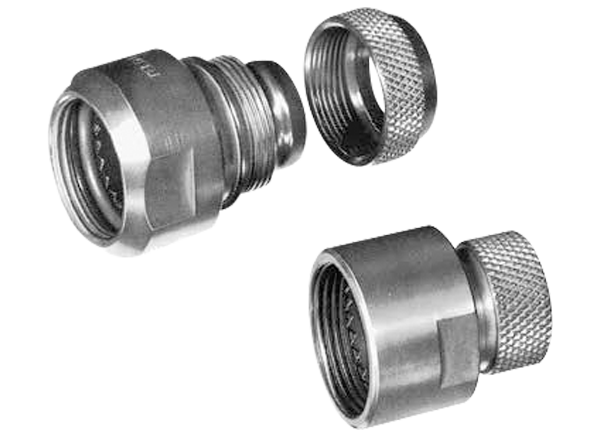

Amphenol Air LB Germany Circular MIL Spec Connectors

Amphenol Air LB Germany Circular MIL Spec Connectors meet the demands of military, aerospace, and industrial applications. Amphenol Air LB Circular MIL Spec Connectors offer a wide operating temperature range, environmental protection up to IP67, and a rugged design for withstanding harsh environments. This range of connectors includes miniature circular connectors and versions with convenient push-pull operation.

Features

  • VG96912
    • Meets requirements of specification PAN 6433-2 and MIL-C-38999
    • 100% contact protection (scoop-proof), high contact density, and HF-tightness
    • -65°C to 175°C operating temperature range
    • Insulation resistance
      • 5000MΩ at room temperature
      • 500MΩ at maximum temperature (moisture-proof version)
      • 50MΩ at maximum temperature (hermetically sealed version)
  • VG95328
    • Miniature circular connectors
    • Meets MIL-C-26482 series 1 and VG 95328 standards
    • Three-pin bayonet couplings
      • Solder, crimp, PCB, and wirewrap connections as well as an HF-sealed version
  • VG95234
    • -55°C to +125°C operating temperature range
    • 500 minimum cycles of endurance
    • Reverse bayonet coupling, waterproof, and resistant to vibration and wear
  • ECTA 133
    • Push-pull locking system
    • -40°C to +125°C operating temperature range
    • 1000 mating/unmating operations for all shell types
    • Up to IP66/67 rating depending on the backshell
  • ECTA 544
    • Push-pull locking system
    • -40°C to +125°C operating temperature range
    • 1000 mating/unmating operations (with machined contacts)
    • 250 mating/unmating operations (with stamped rolled contacts)
    • Up to IP67 rating

Applications

  • Military
  • Aerospace
  • Railway
  • Robotics
  • Industrial
  • Test equipment
  • Transportation
    • Land vehicles
    • Marine vessels

VG96912 Exploded View

Mechanical Drawing - Amphenol Air LB Germany Circular MIL Spec Connectors
