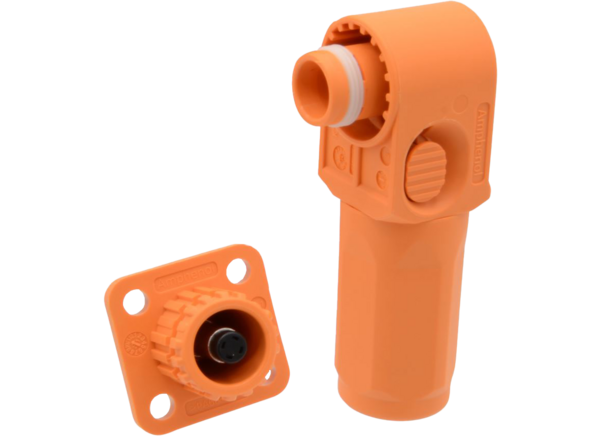

Amphenol Industrial SurLok Plus™ Heavy-Duty Power Connectors
Amphenol Industrial SurLok Plus™ Heavy-Duty Power Connectors are IP67-rated, field installable, highly reliable connectors offering industry-standard crimp, screw, and busbar termination options. There is no need for special torque tools. The SurLok components feature a quick-lock and press-to-release function as well as a "keyway" design to prevent incorrect mating. Amphenol SurLok Plus Connectors incorporate the latest R4 RADSOK® technology. This technology utilizes the high tensile strength properties of a stamped and formed high conductivity alloy grid to produce low insertion forces while maintaining a large conductive surface area.
Features
- R4 RADSOK technology
- IP67 rated when mated
- Touch proof
- Quick-lock and press-to-release functions
- Spring locking
- "Keyway" design to prevent incorrect mating
- 360° rotating plug (optional)
- Various termination options (threaded, crimp, busbar)
- Compact robust design
- UL 94V-0 flammability rating
- RoHS compliant
Applications
- EV/HEV
- BMS/Energy storage
- Medical
- Rail mass transit
- Process control/automation
- Heavy equipment
Specifications
- 50A to 500A current rating range
- 1000VDC to 1500VDC operating voltage range
- -40°C to +125°C operating temperature range
- ≥100 cycle durability
- Orange, black, gray, and red color options
SurLok Dimensions
