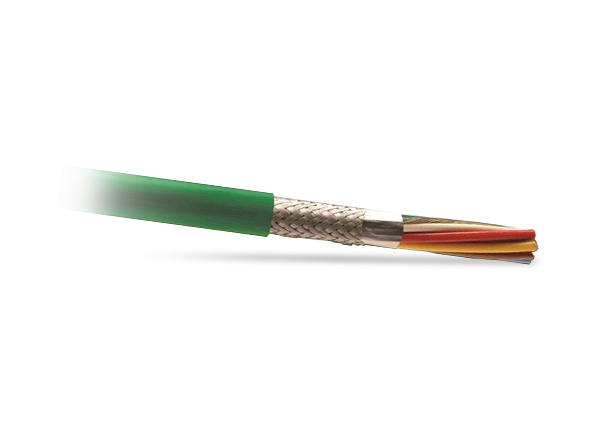

Alpha Wire EcoCable®

Alpha Wire EcoCable^® is 100% recyclable with modified polyphenylene ether (mPPE) jacketing and insulation. This material provides the advantages of a smaller, lighter control cable that can handle temperatures from -50°C to +105°C. Alpha Wire EcoCable is up to 47% smaller and up to 65% lighter than PVC cable while meeting RoHS and WEEE requirements. These cables do not contain halogens, phthalates, or heavy metals, and are available as unshielded, braid shielded, or with Supra-Shield^® foil + braid shield.

Features

100% recyclable
No halogens, phthalates, or heavy metals
Jacket and insulation made of mPPE
Suitable for use in NFPA 79 applications

Up to 6x flexing bend radius
Available as unshielded, braid shielded, or with Supra-Shield® foil + braid shield
-50°C to +105°C temperature range

Approvals

• UL AWM 21510 (600V, 105°C) and UL AWM 21492 (300V, 80°C)
• CE
• UL VW-1
• RoHS and REACH compliant
• CSA AWM I/II A/B FT1
• WEEE
• IEC 60332-2 flame behavior
