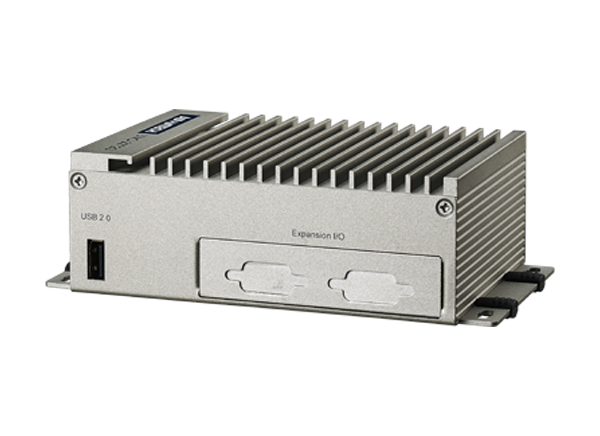

Advantech UNO-2272G Palm-Size Automation Computer

Advantech UNO-2272G Palm-Size Automation Computer is a compact, fanless computer with an embedded Linux operating system. The UNO-2272G is offered with a 1.86GHz Intel® Atom™ Dual Core N2800 CPU or a 2.0GHz Celeron® J1900 Processor with 2GB DDR3 /DDR3L memory. The UNO-2272G features a rich range of interfaces, including 1x serial port, 1x GbE LAN, 3x USB ports, and HD 7.1 audio. Expansion options include 2x Mini-PCIe and SIM support, enabling Wi-Fi®, 3G, and I/O expansion capabilities. The UNO-2272G supports a VGA or HDMI display, depending on the model.

The Advantech UNO-2272G features a compact, rugged 157mm x 88mm x 50mm aluminum enclosure and is stand, wall, VESA, and DIN-rail mountable.

Features

Intel Atom N2800 or Celeron J1900 Processor
2GB DDR3 or DDR3L Memory
1x GbE, 3x USB 2.0/3.0, 1x COM, 1x VGA or HDMI, HD audio
Fanless compact design

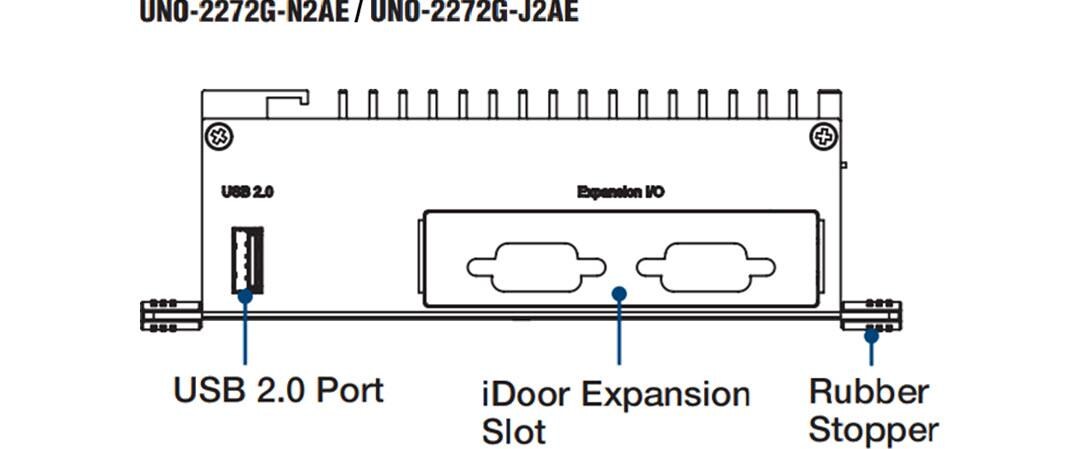

Rubber stopper design with captive screw
Diverse system I/O and isolated digital I/O by iDoor Technology
Supports Fieldbus protocol by iDoor Technology
Supports MRAM by iDoor Technology

Applications

Industry 4.0
Intelligent automation
Digital signage

Kiosks and Point of Sale (PoS)
IoT monitoring sensors
Smart facility

Specifications

General
- Certification: CE, FCC, UL, CCC, BSMI
- Dimensions: 157mm x 88mm x 50mm
- Form factor: Palm size
- Enclosure: Aluminum housing
- Mounting: Stand, wall, VESA, DIN-rail
- Weight: 8kg (1.76lbs)
- Power requirement: 24V_DC ±20%
- Power consumption: 14W (Typical), 3W (Maximum)
System hardware
- BIOS: AMI EFI64 Mbit
- Watchdog timer Programmable 256 levels timer interval, from 1s to 255s
- Processor options
  - UNO-2272G-N2AE: 1.86GHz Intel Atom Dual Core N2800
  - UNO-2272G-J2AE: 2.0GHz Intel Celeron Quad Core J1900
- System chip: Intel Atom SoC integrated
- Memory options
  - UNO-2272G-N2AE: Built-in 2GB 1066MHz DDR3
  - UNO-2272G-J2AE: Built-in 2GB 1333MHz DDR3L, up to 8GB
- Graphics engine: Intel® HD Graphics
- Ethernet options
  - UNO-2272G-N2AE: Intel 82583V GbE, 10av, IEEE1588/802.1AS, 803.3az
  - UNO-2272G-J2AE: Intel i210 GbE, 10av, IEEE1588/802.1AS, 803.3az
  - LED indicators: Power, HDD, LAN (Active, Status)
- Storage options
  - UNO-2272G-N2AE: 1x full-size mSATA
  - UNO-2272G-J2AE: 1x half-size mSATA
- Expansion
  - UNO-2272G-N2AE: 1x full-size mPCIe slot, 1x half-size mPCIe slot
  - UNO-2272G-J2AE: 2x Full-size mPCIe slots

I/O interfaces
- Serial ports
  - UNO-2272G-N2AE: 1x RS-232, DB9, 50kbps to 115.2kbps
  - UNO-2272G-J2AE: 1x RS-232 (RS-422/485 by BIOS option), DB9, 50kbps to 115.2kbps
- LAN ports 1x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000BASE-T Fast Ethernet
- USB ports
  - UNO-2272G-N2AE: 3x USB 2.0
  - UNO-2272G-J2AE: 2x USB 2.0, 1x USB 3.0
- Display options
  - UNO-2272G-N2AE: 1x VGA, supports 1920 x 1080 @ 60Hz 24bpp
  - UNO-2272G-J2AE: 1x HDMI, supports 1920 x 1080 @ 60Hz
- Audio: Line-out
- Power connector: 1x 2-pin terminal block
OS support
- UNO-2272G-N2AE: Advantech Linux, Microsoft® Windows 7
- UNO-2272G-J2AE: Advantech Linux, Microsoft Windows 7, 10
Environment
- Operating temperature
  - UNO-2272G-N2AE: -20°C to +60°C
  - UNO-2272G-J2AE: -20°C to +55°C
- Storage temperature: -40°C to +85°C
- Relative Humidity: 10% to 95% RH @ 40°C, non-condensing
- Shock protection: Operating, IEC 60068-2-27, 50G, half sine, 11ms
- Vibration protection: Operating, IEC 60068-2-64, 2Grms, random, 5Hz to 500Hz, 1hr/axis (mSATA)
- Ingress protection: IP40
