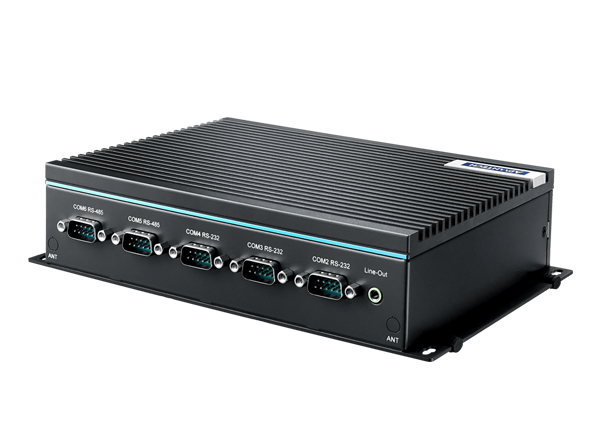

Advantech UNO-247 Automation Computer

Advantech UNO-247 Automation Computer is based on the Intel® Celeron® J3455 processor. This automation computer comes with 2 x LAN, 6 x COM, 4 x USB, 1 x HDMI, and 1 x VGA. The UNO-247 automation computer features a robust design with high stability and compact size with fanless design. This automation computer incorporates optional 3G/GPS/GPRS/Wi-Fi communication. The UNO-247 computer employs a threaded DC jack design for a more steady power supply. This automation computer includes an optimized mechanical design that makes the RAM swapping easier.


  • Intel Celeron J3455 processor automation computer
  • Robust design with high stability
  • Includes:
    • 2 x GbE
    • 2 x USB 3.0
    • 2 x USB 2.0
    • 4 x RS232
    • 2 x RS485
    • 1 x HDMI
    • 1 x VGA
  • Compact size with fanless design
  • Rubber stopper design for stand mount and optional kit for DIN-rail mount
  • Optional 3G/GPS/GPRS/Wi-Fi communication
  • Threaded DC jack design for a steady power supply
  • Easy RAM swapping enabled by the optimized mechanical design


  • 1 x slot that supports up to 8G RAM memory
  • 1 x mSATA and 1 x HDD storage
  • 12VDC power supply
  • 1 x HDMI and 1 x VGA display
  • 140mm x 200mm x 50mm dimensions

Panel Diagram

Mechanical Drawing - Advantech UNO-247 Automation Computer

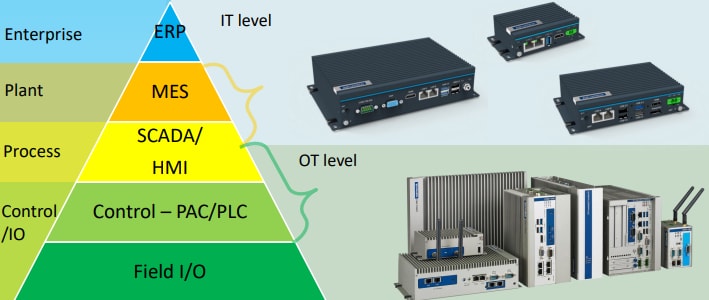

Application Overview

Advantech UNO-247 Automation Computer
